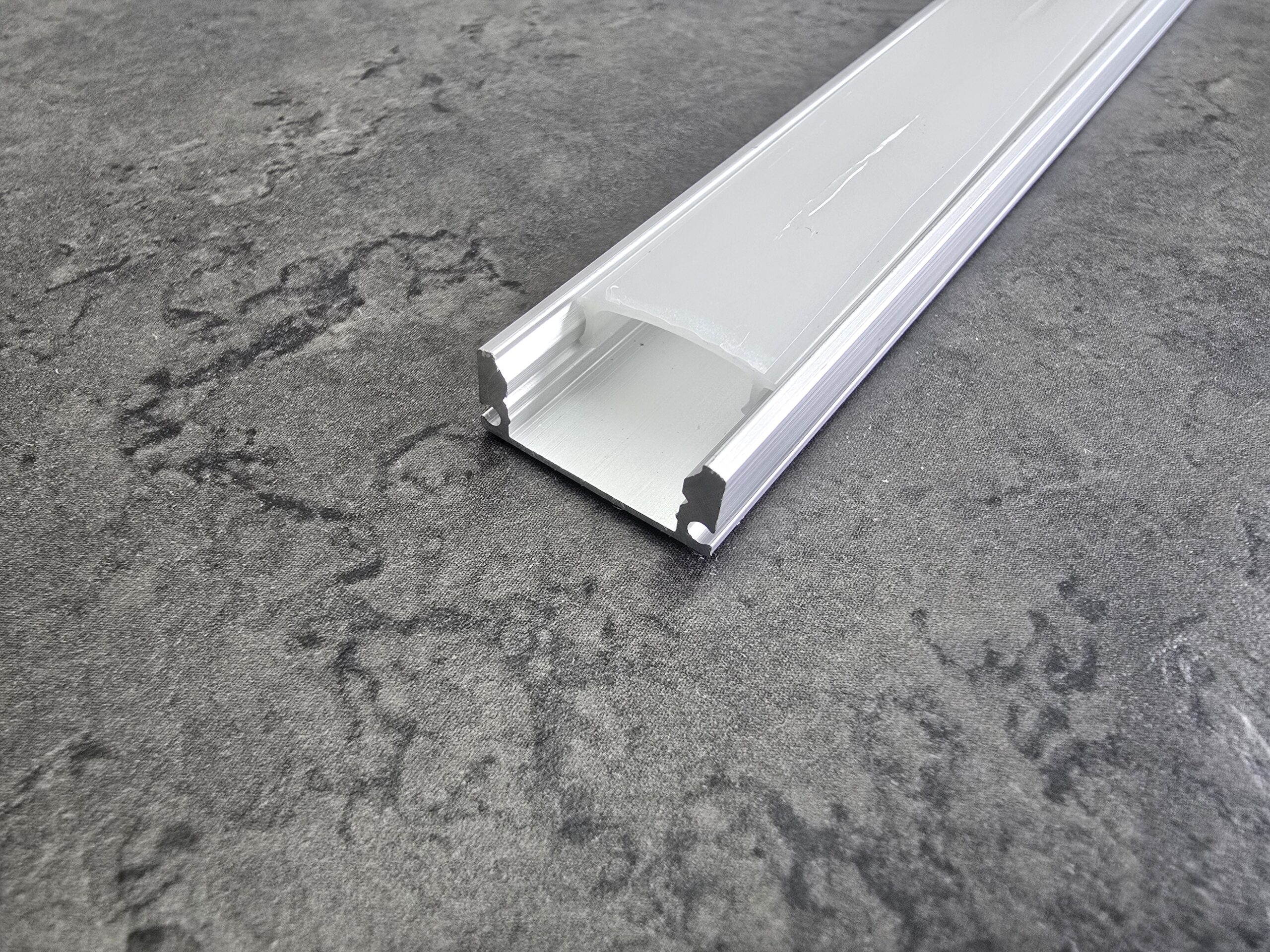

Ultra-Slim Surface Mounted Aluminium LED Profile (1m) – Low Profile Design, Max PCB 12mm – Includes End Caps & Clips
£5.83
| Diffuser Type | Opal |
| Installation Type | Surface Mounted |
| Dimensions (Cross-section) | 17mm (W) x 7mm (H) |
| Inclusions | 2 End Caps & 2 Mounting Clips |
In Stock
Free shipping over £150
Bespoke Projects
Expert support
Same day delivery
At Ultimate LEDs, we personally select every aluminium profile for its blend of discreet aesthetics and robust thermal performance. Achieve incredibly subtle, wide-area illumination with our Ultra-Slim Surface Mounted Aluminium LED Profile. At just 7mm high, this unique profile offers an incredibly low-profile housing for standard-width LED strip lights (up to 12mm), making it perfect for visible installations where clearance is minimal. Ideal for integrated lighting within shelving, display cases, or beneath shallow cabinets. Complete with an opal diffuser, it transforms individual LED dots into a beautiful, continuous line of soft, uniform light, creating a sophisticated and virtually invisible high-end finish.
Key Features & Technical Benefits
Feature | Detail | Strategic Benefit (Why the professional needs it) |
Ultra-Low Profile | Minimal 7mm height with 17mm width. | Space-Saving: Provides a powerful 12mm channel in a design that is barely noticeable, ideal for constrained architectural spaces. |
Essential Heatsink | Crafted from compact, high-grade anodized aluminium. | VITAL: Efficiently dissipates heat, even in the slim form factor, to significantly extend the lifespan of your 24V LED strips, validating the 5-Year Warranty. |

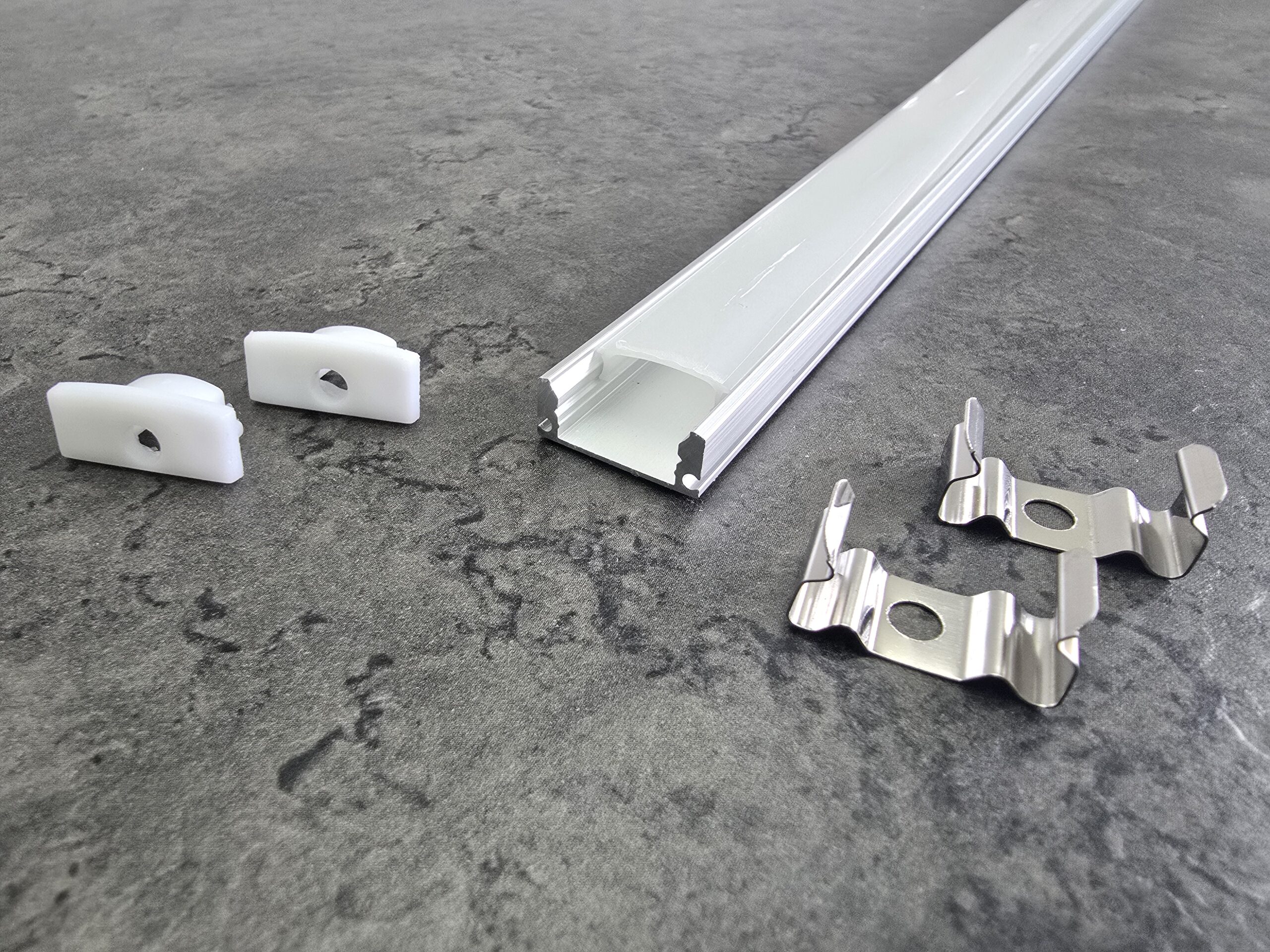

Complete Kit | Includes 2 End Caps and 2 Mounting Clips. | Ready-to-Install Value: Provides all necessary finishing components in the box, saving time and ensuring a quick, clean, and professional installation. |
Installation Efficiency | Convenient 1-meter length. | Perfect for small, defined areas like cabinet sections or short display runs, minimizing waste and simplifying transport/handling on site. |
Professional Aesthetics | Opal diffuser eliminates the "dot effect." | Ideal for integration, providing a smooth, seamless line of illumination where discretion and a high-end, architectural look are essential. |
Suggested Applications:
Installation & Compatibility
Compatibility & Recommended Accessories
This profile is designed to house any of our 24V LED Strip Lights up to 12mm wide. Using an aluminum profile is mandatory to validate the strip's warranty.
- All 24V LED Strip Lights (up to 12mm wide): LED Strip Lights
- Compatible End Caps (Slim 17x7 Profile)
- Mounting Clips (Slim 17x7 Profile)
Technical Specifications & Support
Specification | Detail |
Material | High-Grade Anodized Aluminium |
Length | 1 meter |
Diffuser Type | Opal |
Installation Type | Surface Mounted |
Internal Width | 12mm |
Dimensions (Cross-section) | 17mm (W) x 7mm (H) |
Inclusions | 2 End Caps & 2 Mounting Clips |
Heat Dissipation | Excellent |
Warranty | 5-Year Ultimate LED's Warranty |
Certifications | CE, RoHS |
Installation & Support | Installation is straightforward using mounting clips or direct screwing. |
