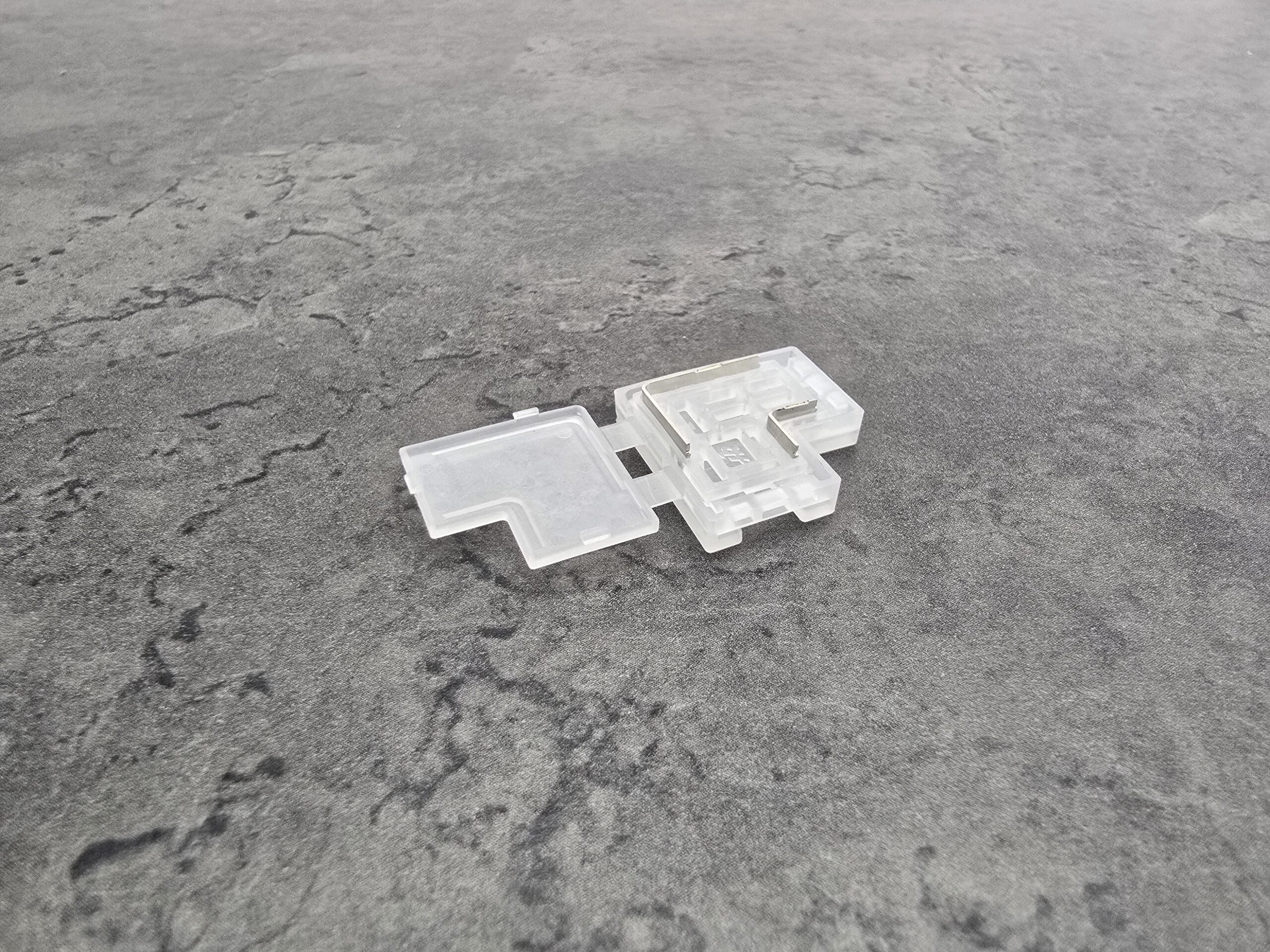

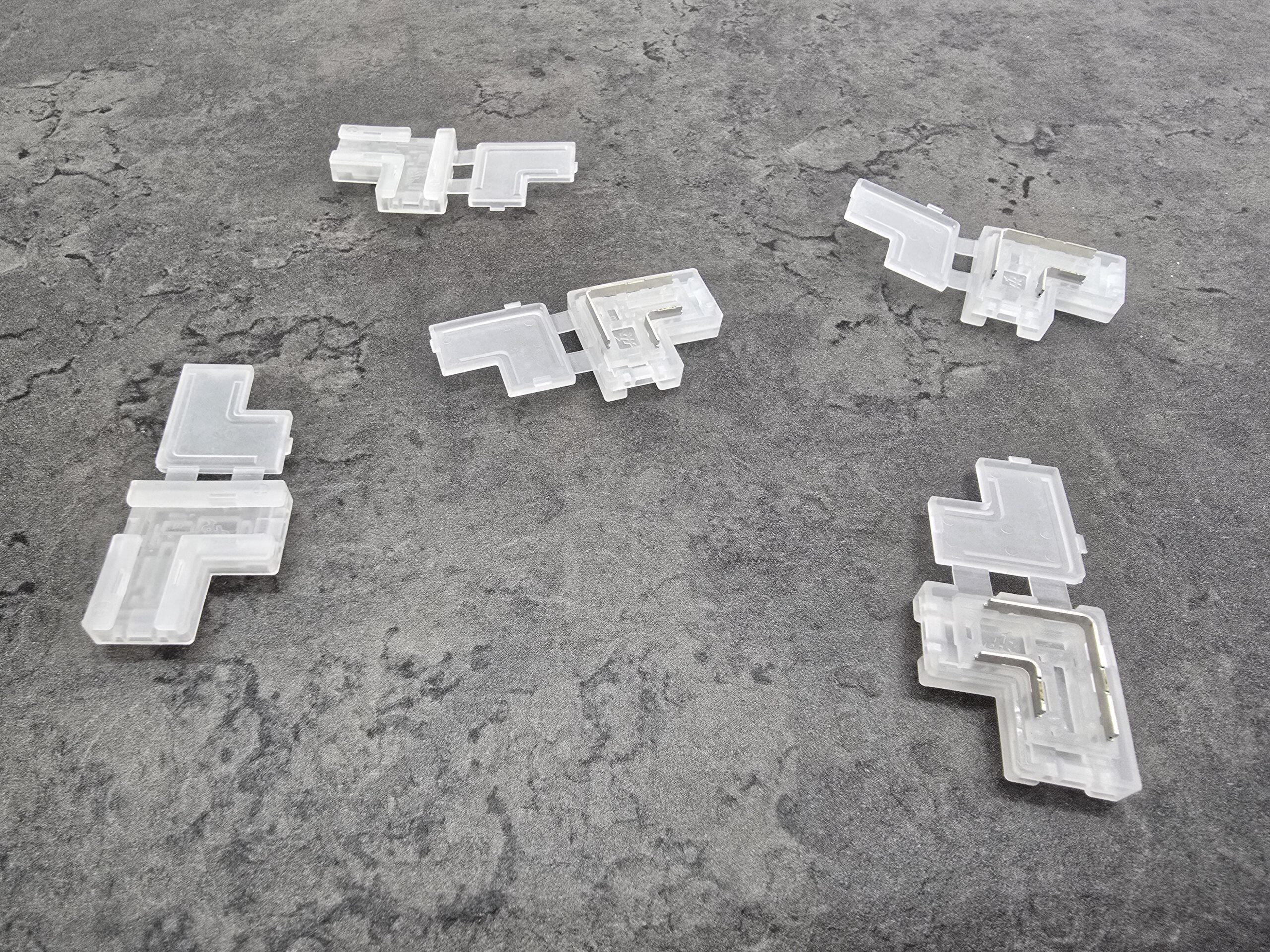

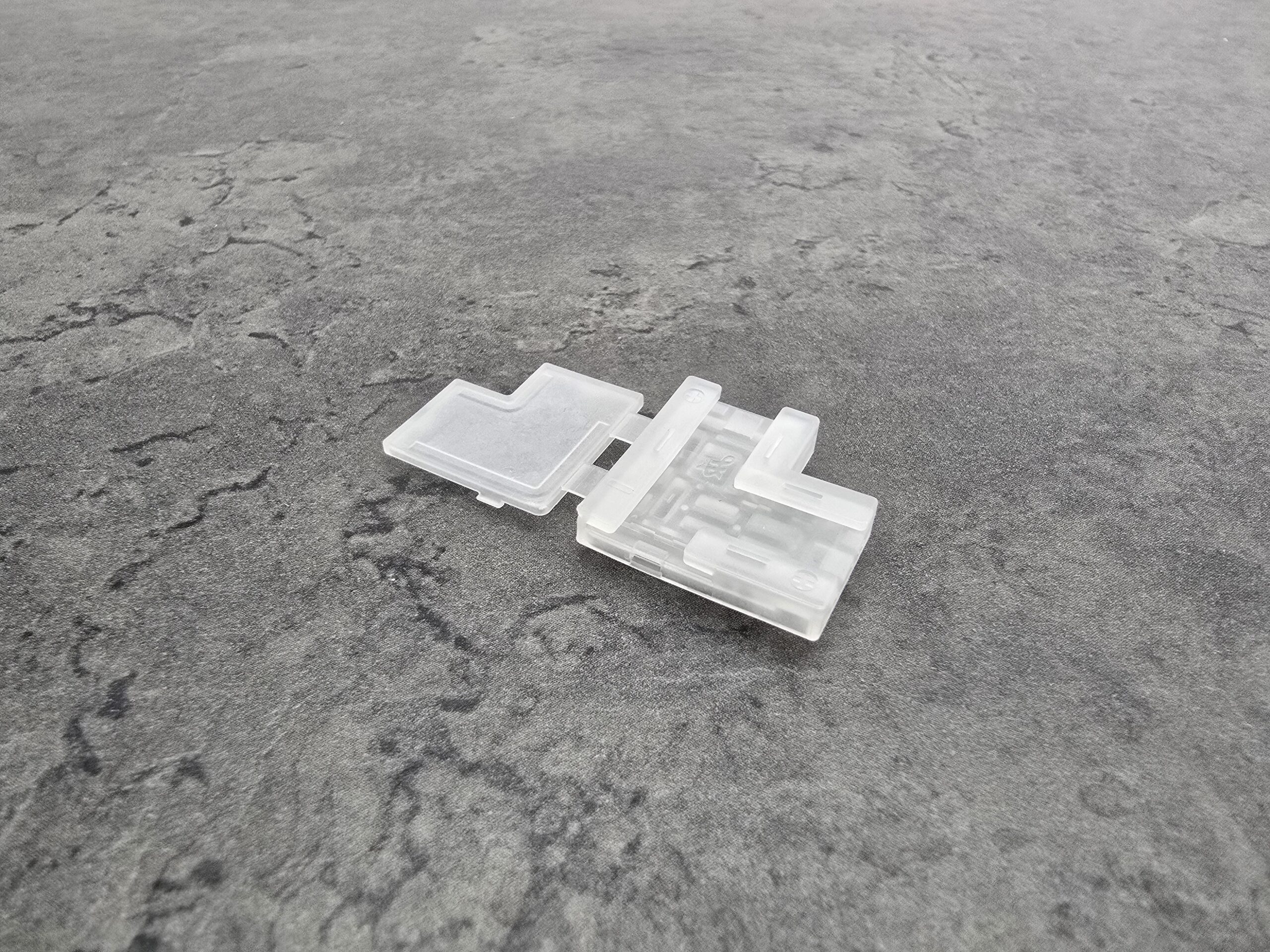

Solderless T-Shape Split Connector for Single Colour LED Strip – 2-Pin (8mm & 10mm PCB)
£12.00
IP Rating
|
|
|---|---|
Angle
|
|
| Size |
10mm ,8mm |
Max Current
|
|
Pin Type
|
Free shipping over £150
Bespoke Projects
Expert support
Same day delivery
Master the Branching Corner: Effortless Single-Colour LED Splits.
The Solderless 2-Pin T-Shape Connector is the ultimate solution for creating clean, professional-grade branches in your single-color LED lighting runs. Whether you need to illuminate a T-shaped shelf unit, split a run to light two cabinets, or simply create a neat ‘T’ junction, this connector allows you to feed power to three distinct strip segments without the mess of soldering or the need for jumper wires.
Available in the two most common sizes—8mm and 10mm—it guarantees a secure, high-conductivity connection for continuous, uniform brightness across all three branches.
Key Features & Technical Benefits (The “What”)
| Feature | Detail | Strategic Benefit |
| 2-Pin Configuration | Connects the two conductors: Positive (+) and Negative (-). | Single Colour Focus: Perfectly suited for standard White, Warm White, Blue, Red, or any single-colour LED strip lights. |
| T-Shape Junction | Splits the power and light signal from one incoming strip to two outward strips (1 input, 2 outputs). | Three-Way Branching: Essential for custom installations around square objects, such as cabinets, shelves, or architectural features. |
| 8mm & 10mm Availability | Dedicated versions to match both 8mm (e.g., 3528/2835) and 10mm (e.g., 5050/5630) single-colour strip PCBs. | Guaranteed Fit & Performance: Ensures a tight mechanical and electrical connection specific to your LED strip’s width, preventing power loss. |
| Solderless, Clamp-On Design | Utilizes a secure clasp mechanism to pierce the strip’s copper pads. | Quick, Reliable Installation: Allows for fast, tool-free connection, making DIY or professional installs simple and permanent. |
| Minimal Profile | Designed to be compact, minimizing dark spots at the junction point. | Seamless Light Output: Ensures the “T” junction is as inconspicuous as possible, preserving the continuous glow of the single-colour strip. |
Installation & Notes
Installation Guidance (Integrated “How To Use”)
Create a T-Junction in 3 Steps:
- Prep the Strips: Cut the main strip (the base of the ‘T’) and the two branching strips cleanly at their marked cut points.
- Align & Insert: Open the three connector clamps. Insert one strip into each of the three slots, ensuring the Positive (+) and Negative (-) markings on the strip perfectly align with the markings inside the connector.
- Secure: Close the three clamps until they snap shut. The internal contacts will pierce the copper pads to establish a secure electrical connection, completing your T-junction.
Compatibility & Recommended Accessories:
Specifications & Compatibility
| Specification | Detail |
| Connector Type | Solderless Clamp Connector / T-Junction |
| Configuration | 2-Pin (Single Colour) |
| Shape | T-Shape (One-to-Two Split) |
| Compatible PCB Widths | 8mm and 10mm (Select size required) |
| Max. Current | 6A |
| Material | Durable PC or PBT Plastic, Copper Conductors |
Critical: Only compatible with single-colour LED strips (2-Pin: + and -). This connector will NOT work with RGB (4-Pin), RGBW (5-Pin), or CCT (3/4/6-Pin) strips.
- All 8mm Single Colour LED Strip Lights: 8mm Strip
- All 10mm Single Colour LED Strip Lights: 10mm Strip
- LED Power Supplies / Drivers: Drivers
