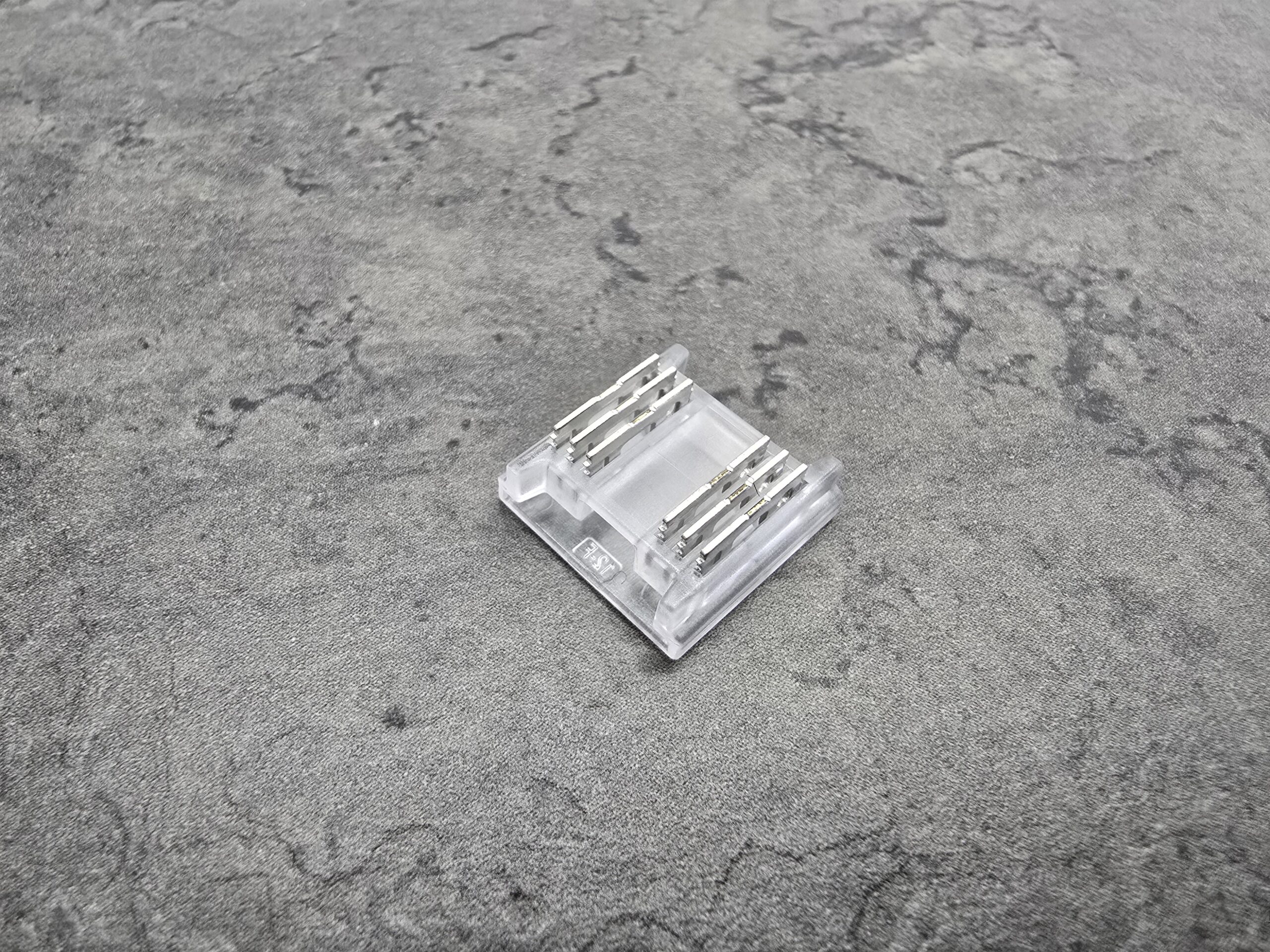

Easy-Connect Solderless RGBW LED Strip Connector – 5-Pin, Straight (12mm PCB)
Price range: £6.00 through £12.00
Free shipping over £150
Bespoke Projects
Expert support
Same day delivery
Maintain Full Color Spectrum: Seamless Straight Connection for RGBW Strips.
When installing RGBW (Red, Green, Blue + White) LED strips, maintaining a flawless connection across all five channels is non-negotiable for color accuracy. The Easy-Connect 5-Pin Straight Splice Connector is engineered to join 12mm RGBW strips end-to-end, guaranteeing perfect electrical continuity for every color (R, G, B, W, and the common Positive).
This solderless solution allows you to create continuous, extra-long runs of dynamic light without sacrificing the strip’s dot-free illumination or complex color control capabilities. Its transparent housing and secure clamping mechanism ensure every critical pin is connected reliably, giving you confidence in your multi-color installations.
Key Features & Technical Benefits (The “What”)
| Feature | Detail | Strategic Benefit |
| 5-Pin Configuration | Connects all five conductors: Red (R), Green (G), Blue (B), Dedicated White (W), and Common Power (+). | Full Color Integrity: Ensures flawless control over complex RGBW modes and the dedicated white channel, preventing color loss or flickering at the joint. |
| Solderless Straight Splice | Connects two cut strips in a straight line instantly, eliminating the need for soldering or wire leads. | Continuous Aesthetic: Maintains the smooth, professional appearance of the linear light run, perfect for fitting within aluminium profiles. |
| 12mm PCB Width | Precisely engineered to clamp onto 12mm wide circuit boards, typically used for higher-density and RGBW strips. | Guaranteed Compatibility: Ensures a tight, secure fit specifically for high-performance 12mm RGBW COB or SMD LED strips. |
| Reliable Contact | Secure, high-pressure clamping mechanism uses micro-piercing conductors to establish a permanent electrical connection on all 5 contact pads. | Flicker-Free Multi-Channel Control: Essential for reliable data and power transmission across all five channels simultaneously. |
| IP Rating Compatibility | Compatible with IP20 only. | Versatile Application: Suitable for indoor dynamic lighting. |
Installation & Notes
Installation Guidance (Integrated “How To Use”)
Seamless RGBW Splicing in 3 Steps:
- Prep the Strips: Cut both RGBW LED strips cleanly along the designated cut points. Ensure the contacts are clean and dry.
- Align & Insert: Open the clip. Insert the first strip into one side, making absolutely certain that the R, G, B, W, and + markings on the strip align with the corresponding pins/markings inside the connector. Repeat for the second strip.
- Secure: Press down the clear clamping plate until it locks securely. Verify the connection by briefly testing the strip lights before securing the final installation.
Specifications & Compatibility
Specifications & Compatibility
| Specification | Detail |
| Connector Type | Solderless Clamp Connector / Butt Connector |
| Configuration | 5-Pin (RGBW / Multi-Colour) |
| Shape | Straight (End-to-End Splice) |
| Compatible LED Strip Type | RGBW COB |
| Compatible Strip Width | 12mm PCB Width Only |
| IP Compatibility | IP20 |
| Material | Durable PC Plastic, Copper Conductors |
| Warranty | 5-Year Ultimate LED’s Warranty |
| Max. Current | 6A |
Compatibility & Recommended Accessories:
Critical: This connector requires precise alignment of the five channels. It is not compatible with Single Colour (2-Pin), CCT Tunable White (3-Pin), or RGB+CCT (6-Pin) strips.
- All 12mm RGBW LED Strip Lights: RGBW Strip
- RGBW LED Controllers: Controllers
Installation & Support:
For visual guidance on ensuring correct polarity alignment for your 5-Pin connection.
