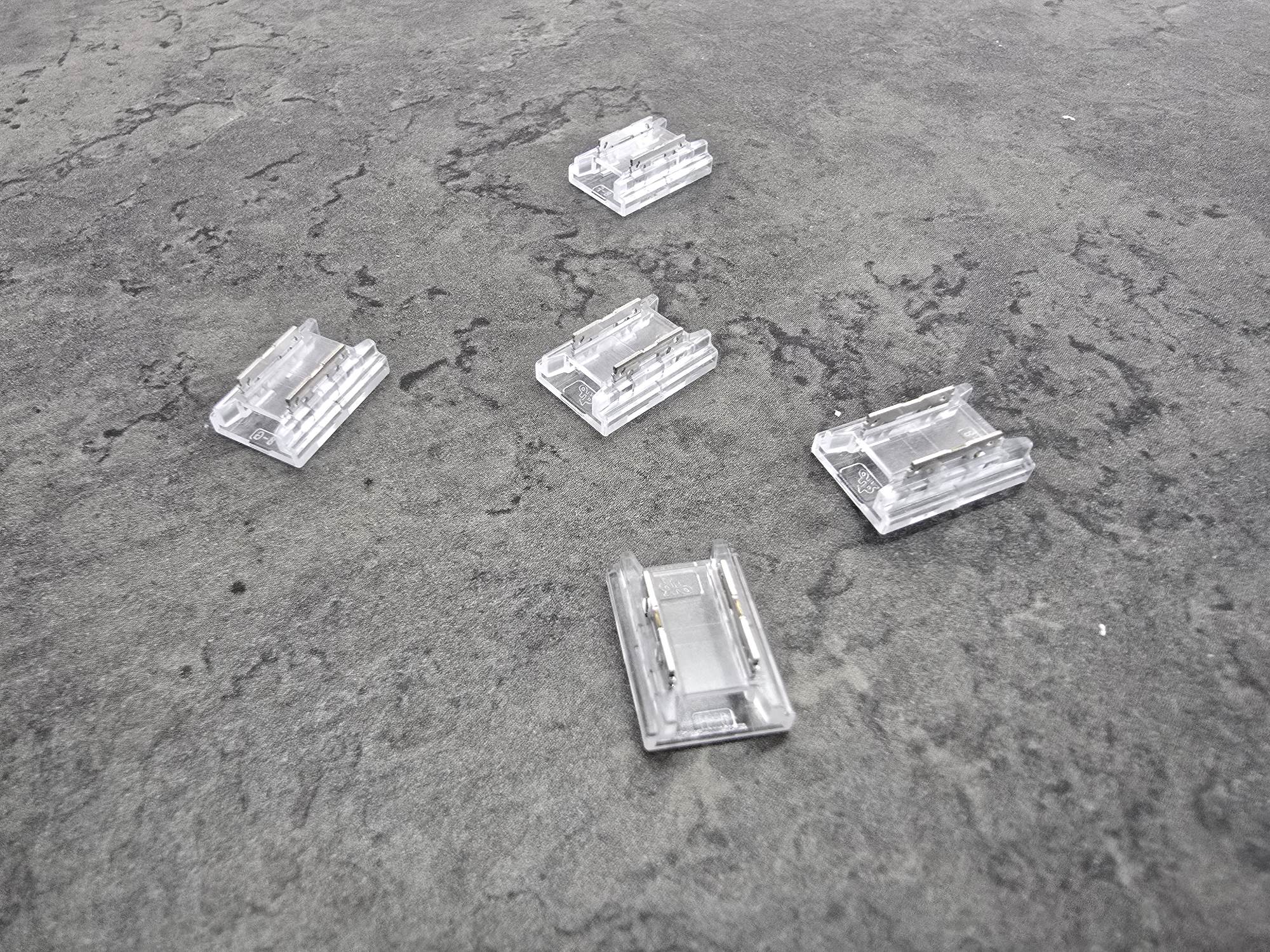

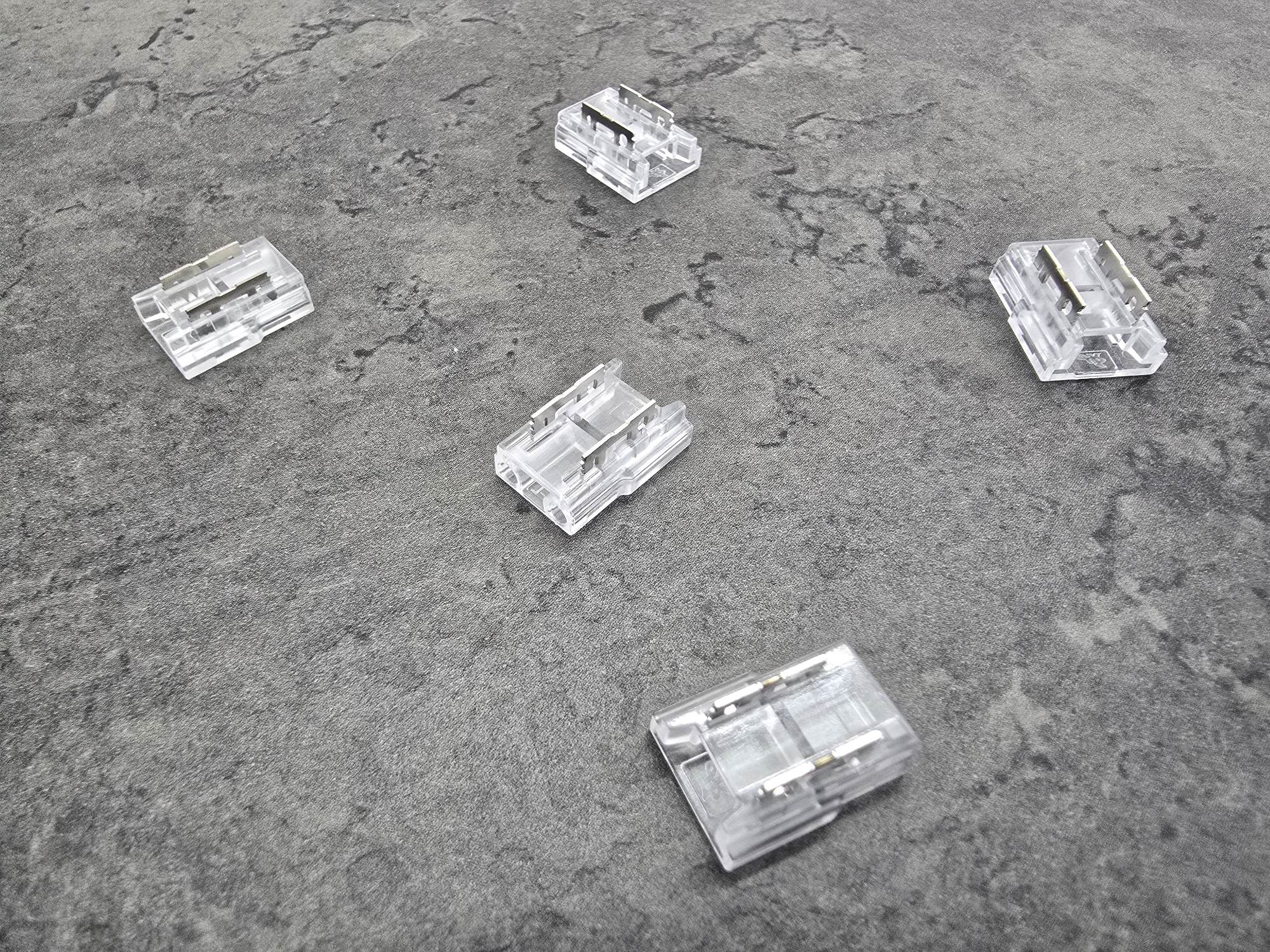

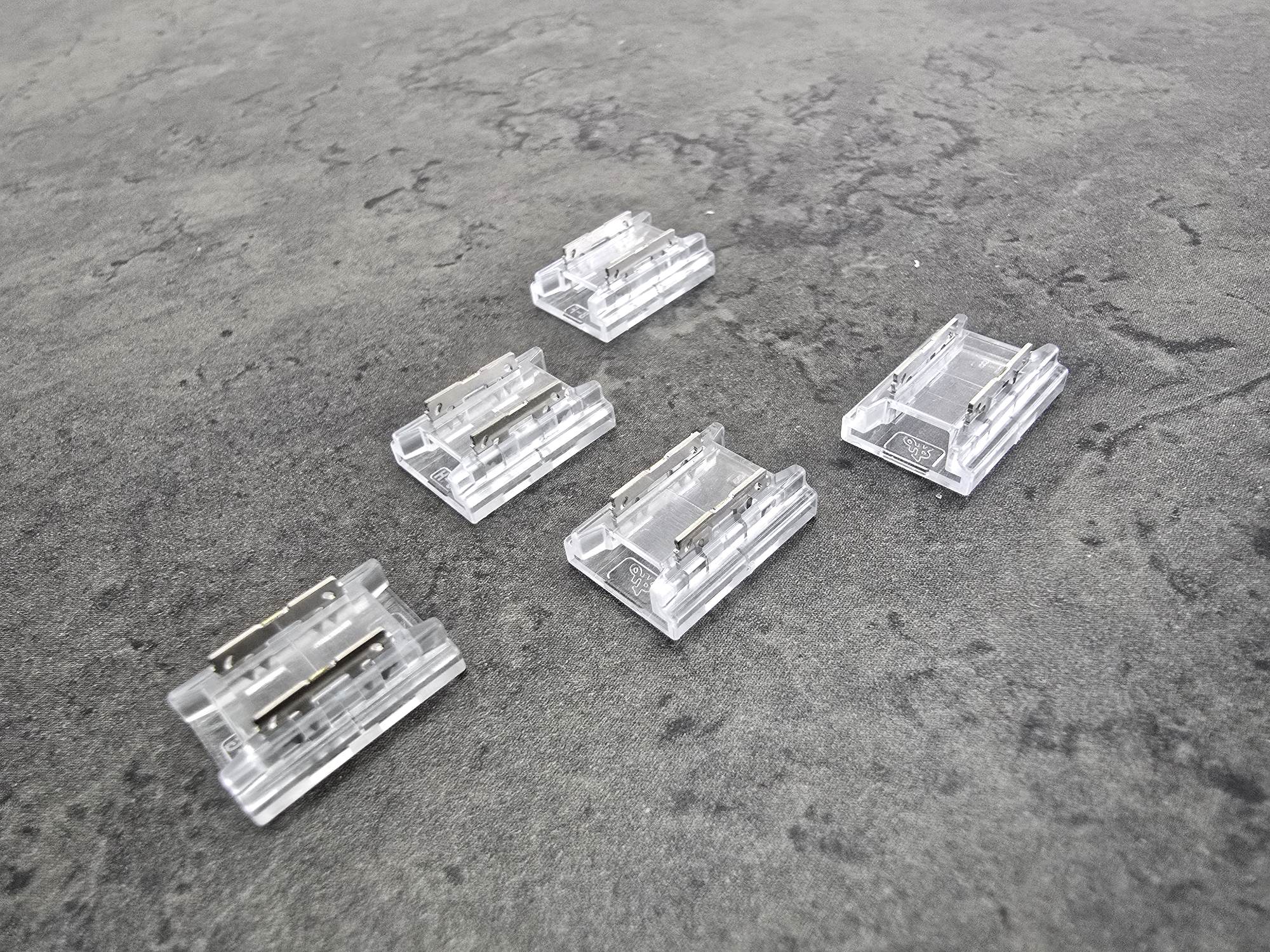

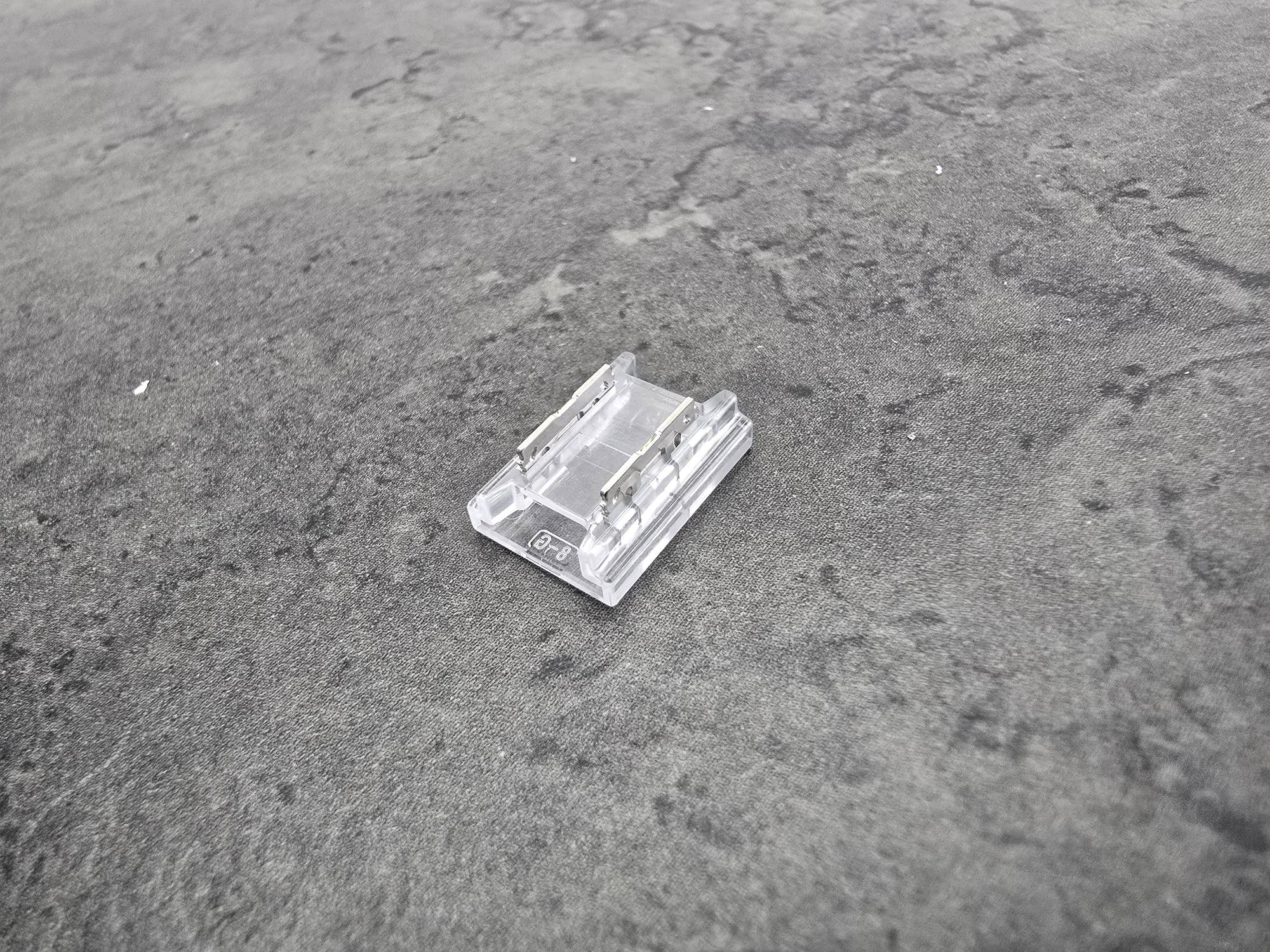

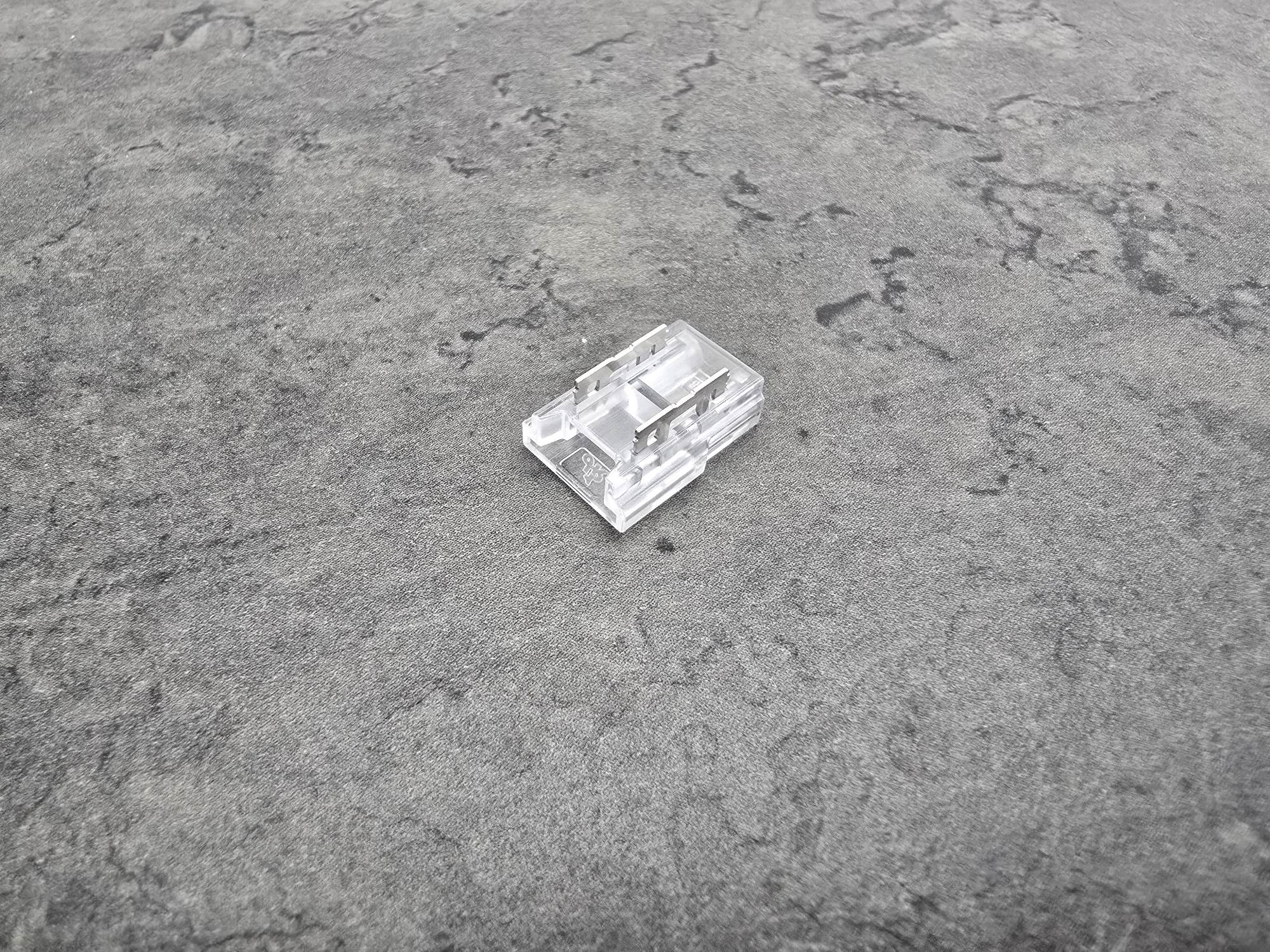

Easy-Connect Solderless COB LED Strip Connector – 2-Pin, L-Shape (8mm & 10mm)

SKU: N/A

£10.00

IP Rating	IP20
Angle	L Connector
Size	10mm , 8mm
Max Current	6 amp
Pin Type	2 Pin

Add to wishlist

0 People watching this product now!

Free shipping over £150

Bespoke Projects

Expert support

Same day delivery

Achieve Perfect 90-Degree Corners with Solderless Precision.

Revolutionize your COB LED strip installations with the Easy-Connect Solderless L-Shape Connector. Engineered for professional results and DIY simplicity, this innovative accessory provides a quick, secure, and tool-free solution for navigating internal or external 90-degree corners. Say goodbye to complex wiring, unsightly crimps, and dark spots in your linear lighting runs.

Crafted to maintain the continuous, seamless glow of your COB strip, this connector features a robust, transparent clamping mechanism that secures the strip ends, guaranteeing a stable electrical connection. This reliability prevents the flickering or power loss often associated with poor corner connections, delivering a professional finish with minimal effort.

Key Features & Technical Benefits (The "What")

Feature	Detail	Strategic Benefit
Solderless, L-Shape Design	Provides an instant, 90-degree turn without soldering, crimping, or bending the strip.	Seamless Corners: Essential for maintaining continuous illumination and avoiding dark spots in cabinetry, coves, and displays.
COB Specific Clamping	Robust, secure clamp mechanism designed for COB strip thickness and density.	Flicker-Free Reliability: Ensures a strong, stable electrical contact that prevents power loss and flickering, even in frequently used installations.
2-Pin Single Colour	Perfectly configured for standard 2-Pin (Positive/Negative) single-color COB LED strips.	Simplified Wiring: Guarantees correct polarity alignment and a reliable connection for your essential white light strips.
8mm & 10mm Options	Available in both 8mm and 10mm widths via the product dropdown.	Versatile Compatibility: Directly supports the two most common COB strip widths, covering the majority of installation requirements.
IP Rating Compatibility	Compatible with both IP20 only	Flexible Application: Use safely in dry indoor areas (IP20)

Installation & Notes

Installation Guidance (Integrated “How To Use”)

Simple, Secure Connection in 3 Steps:

Prep the Strip: Cut your COB LED strip cleanly along the designated copper cut points.
Align & Insert: Firmly push the end of the strip into the connector. Ensure the copper contacts of the strip align perfectly with the metal pins inside the connector.
Secure: Press down the clear clamping plate until it locks securely. The firm clamp creates the electrical connection. Repeat for the second strip end.

Specifications & Compatibility

Specification	Detail
Connector Type	Solderless Clamp Connector
Configuration	2-Pin (Single Colour)
Shape	L-Shape (90-degree Corner)
Compatible LED Strip Type	COB (Chip-on-Board) Single Colour
Available Widths	8mm and 10mm (Select above)
IP Compatibility	IP20
Material	Durable PC Plastic, Copper Conductors
Warranty	5-Year Ultimate LED’s Warranty

Max. Current

6A

Compatibility & Recommended Accessories:

Critical Note: This connector is specifically for COB strip lights. Ensure you select the correct width (8mm or 10mm) in the dropdown. Not compatible with silicone-filled IP67/IP68 strips.
